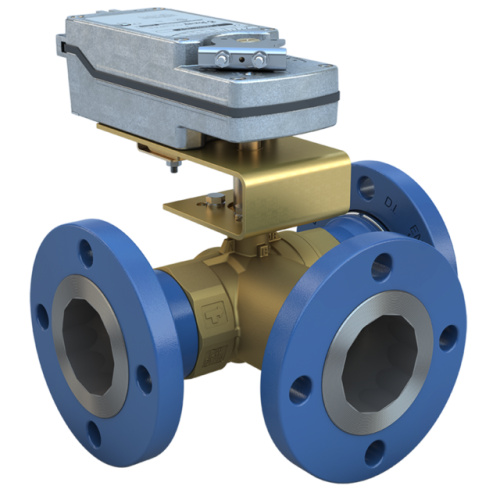

3 inch, STM Flanged Characterized ball valve, 3way, CV 74 | Damper & Valve actuator, 24 Vac/Dc, 177 lb-in,modulating, Spring Return
- Media:
- GPM: --
- Pipe Size: --
- Close off pressure: --
$1,738.55USD Consult Factory
Downloads
Engineering Specifications
Technical Sales Manual
IOM Manual
BIM/REVIT
Technical Brochure
Specifications
| Product: | STM3-3-74/DMS24-180 |
|---|---|
| Valve Size: | 3" |
| 2-Way / 3-Way: | 3-Way |
| Product Type: | Ball Valves |
| Product Family: | Commercial Ball Valves |
| Valve Position: | Normally Open Straight (Branch Closed) |
| End Connection: | ANSI Class 150 Raised Faced Flanged |
| Assembly Cv: | 74 |
| Actuator Product Family: | Electric Damper Actuators |
| Actuator Control Signal: | Modulating |
| Actuator Action: | Spring Return |
| Fail Position: | Fail Open Left to Right |
| Actuator Power Supply: | 24 VAC/DC |
| Actuator Conduit Connection: | 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008 |
| Actuator Area Classification: | IP54;NEMA 2 |
| Close Off Pressure: | 50 |
| Weight: | 55.4 |
