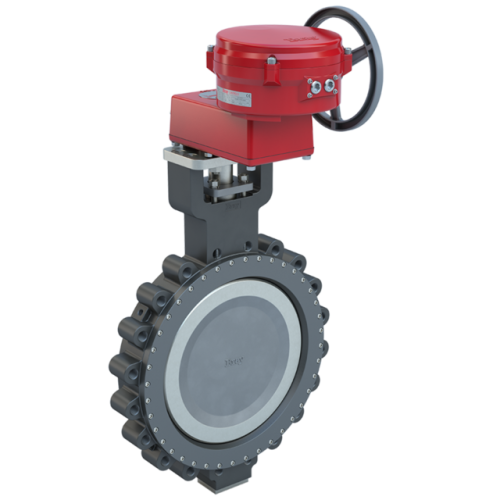

18 inch Lugged Butterfly valve High Performance, ANSI Class 150, CS body, CV 10500, Normally Closed | 120 VAC, Two position, 18000 lb-in, NEMA 4
- Media:
- GPM: --
- Pipe Size: --
- Close off pressure: --
$16,351.50USD Consult Factory
Downloads
BIM/REVIT
Engineering Specifications
Technical Brochure
Quick Start Guide
Specifications
| Product: | MKL2-C180/70-1800 |
|---|---|
| Valve Size: | 18" |
| 2-Way / 3-Way: | 2-Way |
| Product Type: | Butterfly Valves |
| Product Family: | High Performance Butterfly Valves |
| Valve Position: | Normally Closed |
| End Connection: | ANSI Class 150 Lugged |
| Assembly Cv: | 10500 |
| Flow Direction: | Uni-Directional (Seat Retainer Upstream) |
| Actuator Product Family: | Electric Industrial Actuators |
| Actuator Control Signal: | On/Off |
| Actuator Action: | Non-Fail Safe |
| Fail Position: | Fail Last |
| Actuator Features: | Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel |
| Actuator Power Supply: | 120 VAC |
| Actuator Conduit Connection: | 2 x 3/4" NPT |
| Actuator Area Classification: | IP65;IP67;NEMA 4;NEMA 4X |
| Close Off Pressure: | 285 |
| Weight: | 551 |
| Equivalent to: | F6450-150SHP+SY7-110, F6450-150SHP, SY7-110 |
