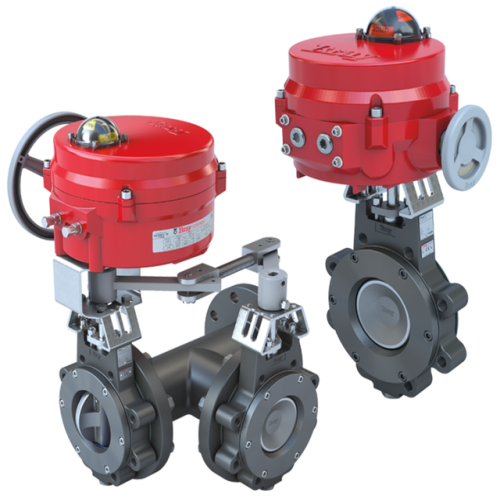

12 inch Lugged Butterfly valve High Performance, ANSI Class 150, CS body, CV 2530, Normally Closed | 24 VAC/DC, modulating, 5000 lb-in, NEMA 4, Heater
- Media:
- GPM: --
- Pipe Size: --
- Close off pressure: --
$7,385.40USD Consult Factory
Downloads
BIM/REVIT
IOM Manual
Engineering Specifications
Technical Brochure
Troubleshooting Guide
Quick Start Guide
Specifications
| Product: | MKL2-C120/70-24-0501SVH |
|---|---|
| Valve Size: | 12" |
| 2-Way / 3-Way: | 2-Way |
| Product Type: | Butterfly Valves |
| Product Family: | High Performance Butterfly Valves |
| Valve Position: | Normally Closed |
| End Connection: | ANSI Class 150 Lugged |
| Assembly Cv: | 2530 |
| Flow Direction: | Uni-Directional (Seat Retainer Upstream) |
| Actuator Product Family: | Electric Industrial Actuators |
| Actuator Control Signal: | Modulating |
| Actuator Action: | Non-Fail Safe |
| Fail Position: | Fail Last |
| Actuator Features: | Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel |
| Actuator Power Supply: | 24 VAC/DC |
| Actuator Conduit Connection: | 2 x 3/4" NPT |
| Actuator Area Classification: | IP65;IP67;NEMA 4;NEMA 4X |
| Close Off Pressure: | 285 |
| Weight: | 182.5 |
