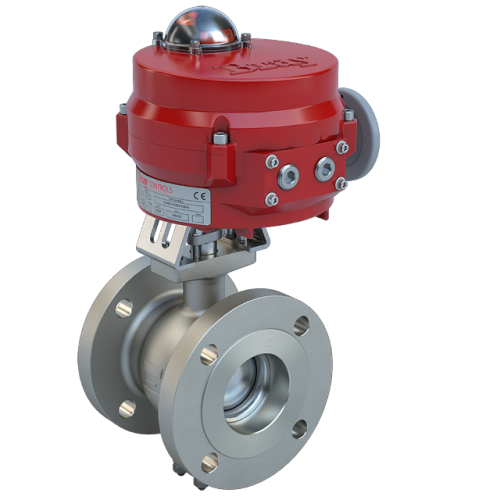

2 inch, Flanged segmented ball valve, SS, CV 19.5, Normally Open | 24 VAC/DC, modulating, 800 lb-in, NEMA 4, Heater
- Media:
- GPM: --
- Pipe Size: --
- Close off pressure: --
$4,350.50USD Consult Factory
Downloads
Submittal
Engineering Specifications
IOM Manual
Troubleshooting Guide
Technical Brochure
Quick Start Guide
BIM/REVIT
Specifications
| Product: | BVMS2-S150-0095/70-24-0081SVH |
|---|---|
| Valve Size: | 2" |
| 2-Way / 3-Way: | 2-Way |
| Product Type: | Ball Valves |
| Product Family: | Segmented Control Valves |
| Valve Position: | Normally Open |
| End Connection: | ANSI Class 150 Raised Faced Flanged |
| Assembly Cv: | 19.5 |
| Actuator Product Family: | Electric Industrial Actuators |
| Actuator Control Signal: | Modulating |
| Actuator Action: | Non-Fail Safe |
| Fail Position: | Fail Last |
| Actuator Features: | Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel |
| Actuator Power Supply: | 24 VAC/DC |
| Actuator Conduit Connection: | 2 x 3/4" NPT |
| Actuator Area Classification: | IP65;IP67;NEMA 4;NEMA 4X |
| Close Off Pressure: | 285 |
| Weight: | 30.9 |
