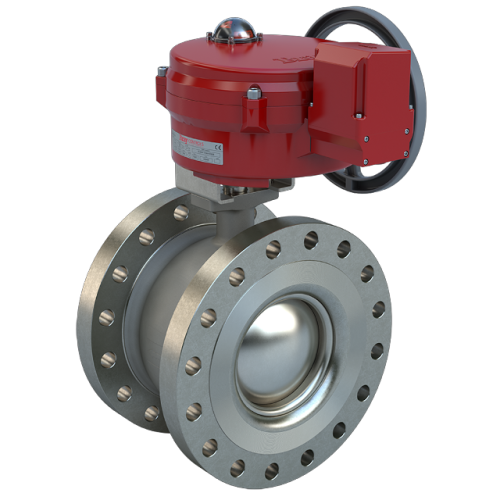

10 inch, Flanged segmented ball valve, SS, CV 571, Normally Closed | 24 VAC/30VDC, Modulating, 5000 lb-in, NEMA 4,Heater,& Battery Backup unit
- Media:
- GPM: --
- Pipe Size: --
- Close off pressure: --
$20,701.45USD Consult Factory
Downloads
Submittal
Engineering Specifications
IOM Manual
Technical Brochure
Troubleshooting Guide
Quick Start Guide
BIM/REVIT
Specifications
| Product: | BVMS10-S150-2380C/70-24-0501SVH-BBU |
|---|---|
| Valve Size: | 10" |
| 2-Way / 3-Way: | 2-Way |
| Product Type: | Ball Valves |
| Product Family: | Segmented Control Valves |
| Valve Position: | Normally Closed |
| End Connection: | ANSI Class 150 Raised Faced Flanged |
| Assembly Cv: | 571 |
| Actuator Product Family: | Electric Industrial Actuators |
| Actuator Control Signal: | Modulating |
| Actuator Action: | Fail Safe |
| Fail Position: | Fail Closed |
| Actuator Features: | Auxiliary Switches;Battery Back-Up Failsafe;Enclosed Terminal Strip;Heater;Manual Override Handwheel |
| Actuator Power Supply: | 24 VAC/30 VDC |
| Actuator Conduit Connection: | 2 x 3/4" NPT |
| Actuator Area Classification: | IP65;IP67;NEMA 4;NEMA 4X |
| Close Off Pressure: | 285 |
| Weight: | 244.7 |
