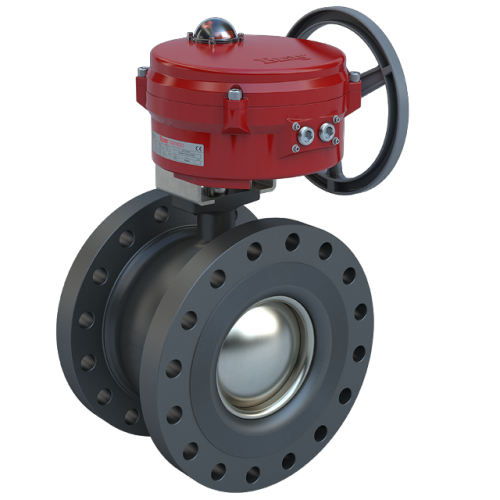

10 inch, Flanged segmented ball valve, CS, CV 2380, Normally Open | 120 VAC, Two position, 5000 lb-in, NEMA 4, Heater
- Media:
- GPM: --
- Pipe Size: --
- Close off pressure: --
$16,031.95USD In Stock
Downloads
Engineering Specifications
Technical Brochure
Quick Start Guide
BIM/REVIT
Specifications
| Product: | BVMS10-C150-2380/70-0501H |
|---|---|
| Valve Size: | 10" |
| 2-Way / 3-Way: | 2-Way |
| Product Type: | Ball Valves |
| Product Family: | Segmented Control Valves |
| Valve Position: | Normally Open |
| End Connection: | ANSI Class 150 Raised Faced Flanged |
| Assembly Cv: | 2380 |
| Actuator Product Family: | Electric Industrial Actuators |
| Actuator Control Signal: | On/Off |
| Actuator Action: | Non-Fail Safe |
| Fail Position: | Fail Last |
| Actuator Features: | Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel |
| Actuator Power Supply: | 120 VAC |
| Actuator Conduit Connection: | 2 x 3/4" NPT |
| Actuator Area Classification: | IP65;IP67;NEMA 4;NEMA 4X |
| Close Off Pressure: | 285 |
| Weight: | 239 |
