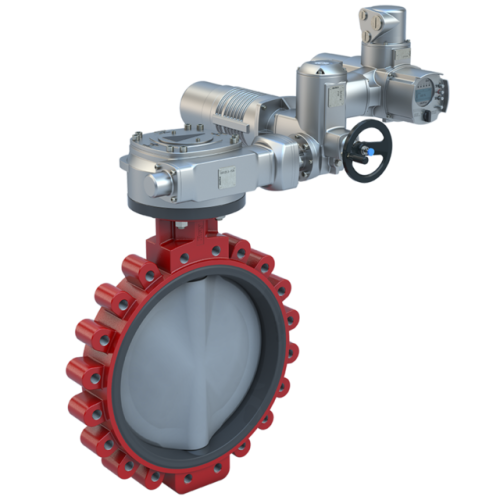

24 inch Lugged Butterfly Valve Resilient Seated, ANSI Class 125/150, DI body, NDI Disc, CV 10267, Normally Closed | 120 VAC, Modulating, 40680 lb-in, NEMA 4
- Media:
- GPM: --
- Pipe Size: --
- Close off pressure: --
$21,444.50USD Consult Factory
Downloads
BIM/REVIT
Engineering Specifications
Technical Brochure
IOM Manual
Specifications
| Product: | 3LNE-24S2C/AU-4068SV |
|---|---|
| Valve Size: | 24" |
| 2-Way / 3-Way: | 2-Way |
| Product Type: | Butterfly Valves |
| Product Family: | Resilient Seated Butterfly Valves |
| Valve Position: | Normally Closed |
| End Connection: | ANSI Class 150 Lugged |
| Assembly Cv: | 10267 |
| Actuator Product Family: | Electric Industrial Actuators |
| Actuator Control Signal: | Modulating |
| Actuator Action: | Non-Fail Safe |
| Fail Position: | Fail Last |
| Actuator Features: | Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel;Torque Switches |
| Actuator Power Supply: | 120 VAC |
| Actuator Conduit Connection: | 2 x 3/4" NPT |
| Actuator Area Classification: | NEMA 4X;NEMA 6P |
| Close Off Pressure: | 150 |
| Weight: | 695 |
| Equivalent to: | F6600HD+SY11-120MFT, F6600HD, SY11-120MFT |
